Copper Patch Cords · CAT.6A

U/UTP CAT.6A Smart Tracing Cable with LED Flash Powered by USB-C

Acelink USB-C powered LED smart tracing patch cable for complex cabling environments — locate cables instantly and troubleshoot faster.

U/UTP CAT.6A Smart Tracing Cable with LED Flash Powered by USB-C

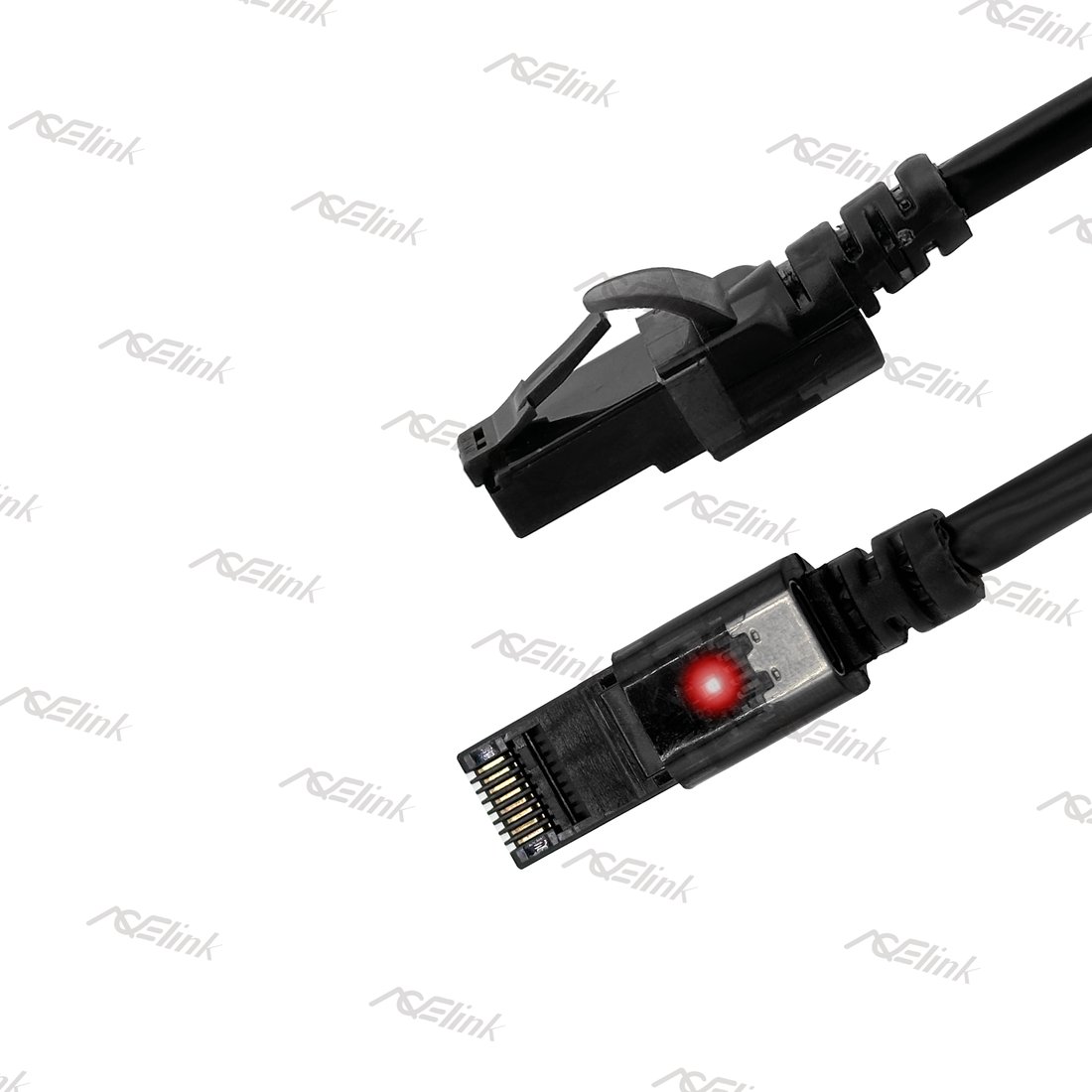

Main view Detail 1 Detail 2 Detail 3

Specifications

Product No. 160929172

U/UTP · 24AWG · USB-C Powered

ConstructionU/UTP
CategoryCAT.6A
Conductor24AWG bare copper
Cable OD6.0±0.2mm
Jacket MaterialLSZH | PVC
ConnectorBuilt-in USB-C Port for Power
Length Rangeup to 20m
ComplianceRoHS, REACH, CE, CPR, ISO 9001, ISO 14001, RCM, UKCA, UL 444
Request Quote ← Back to CAT.6A Products

Applications

🔌Data Centers
🔌Structured Cabling
🔌AI Computing
🔌High-Density Patching
🔌Hotels & Offices

Key Features

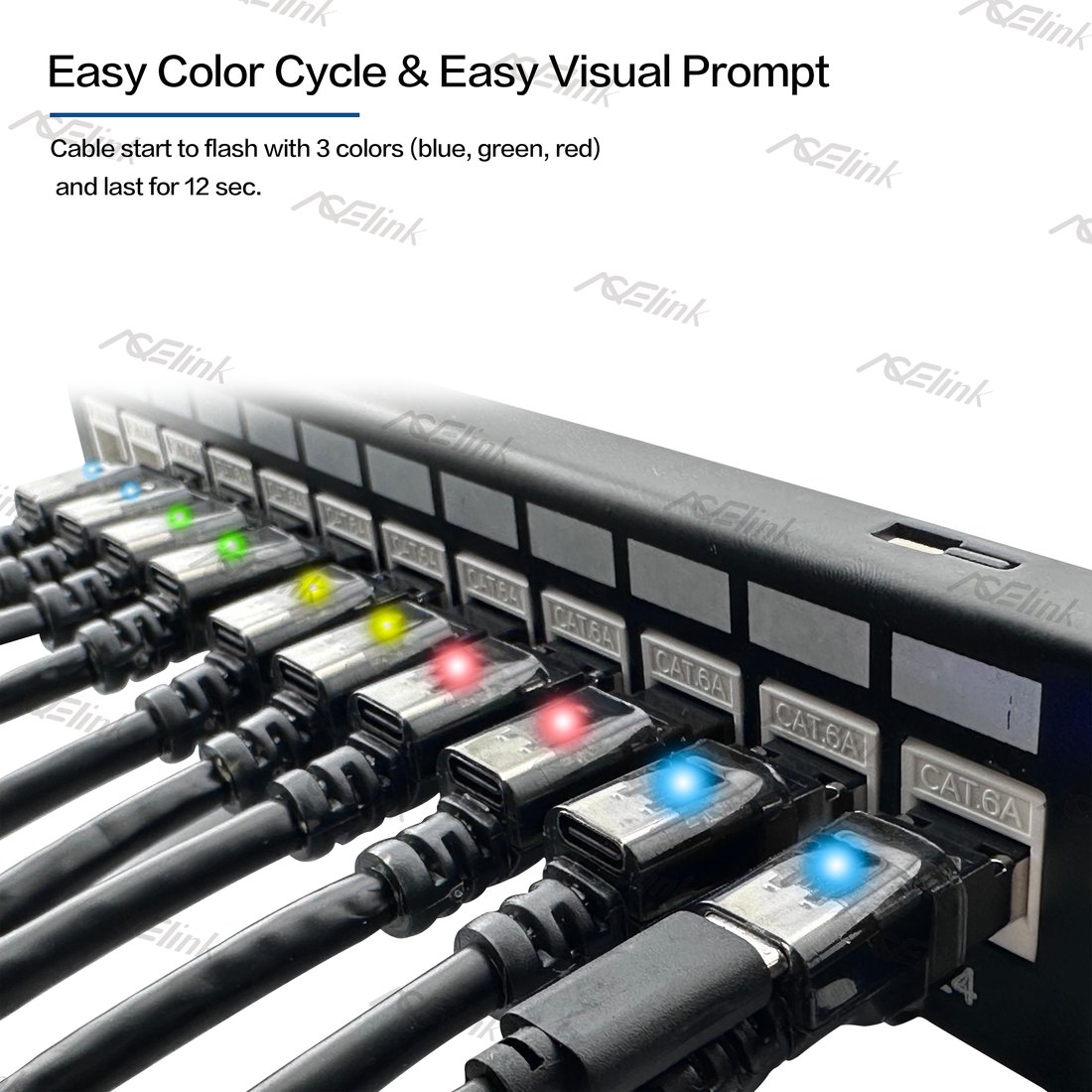

1.Smart Tracing — the LED flashes for 12 sec (6 s slow + 6 s quick) for instant cable tracing
2.Environment Friendly — no built-in battery, safe for logistics and allowed to ship by sea or air
3.Time Saving — dramatically reduces downtime with fast cable identification for maintenance
4.Cost-Effective — significantly lower cost than smart tracing cables with a built-in battery

Customization Options

🔧
Any Length

Any length, connector and boot option to your requirement.

🔧
Jacket & Printing

LSZH or PVC jacket with colour printing available.

🔧
Connector & Boot

Made to your drawing or specification.
