Copper Patch Cords · CAT.6A

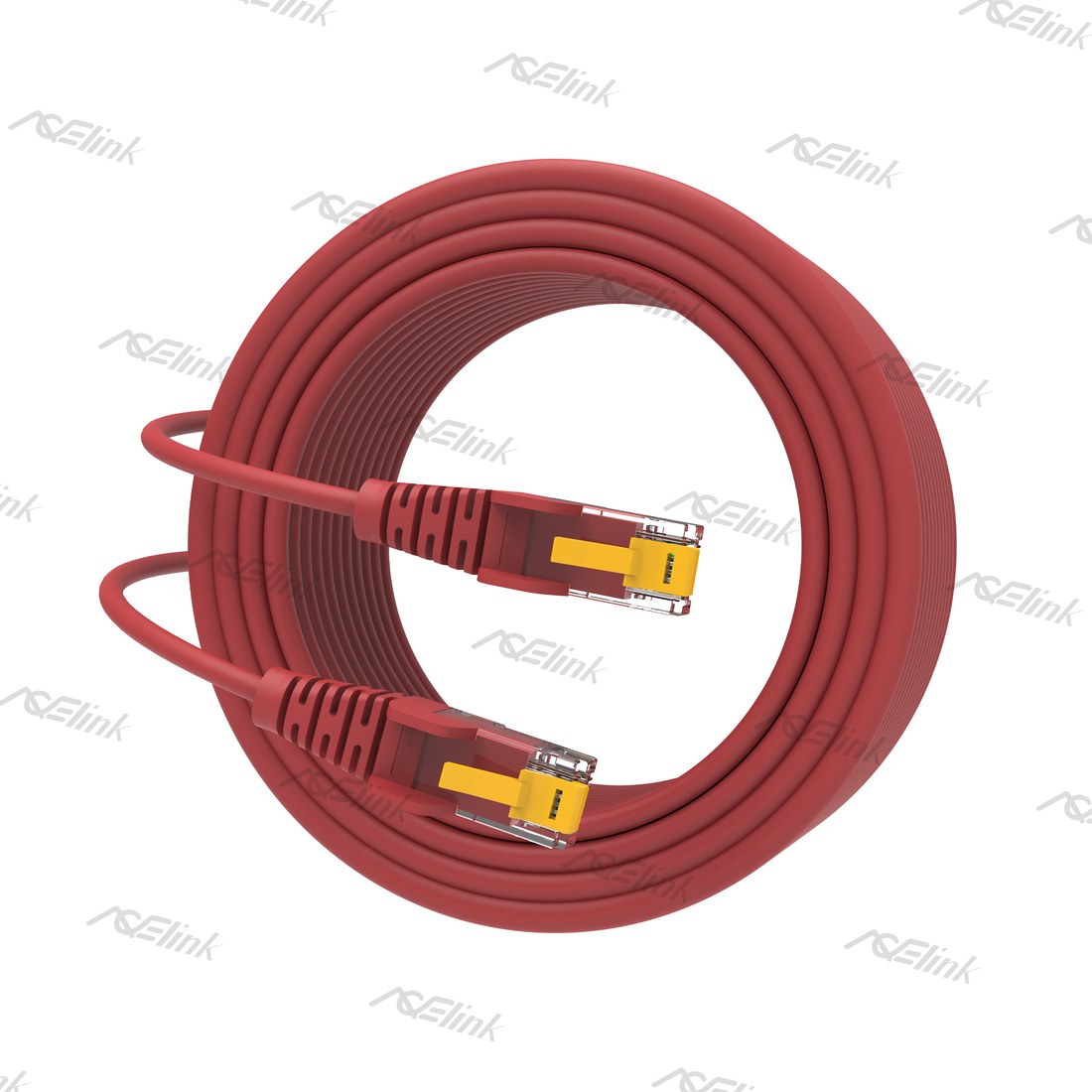

CAT.6A Slim 28AWG 10G Patch Cable with DuraBend Latch Connector

Acelink's innovative slim 28AWG CAT.6A 10G patch cable with DuraBend latch connector features a reinforced nylon latch rated for 5,000 bending cycles. Ideal for high-density, high-traffic environments and designed for frequent plugging and unplugging in public places.

CAT.6A Slim 28AWG 10G Patch Cable with DuraBend Latch Connector

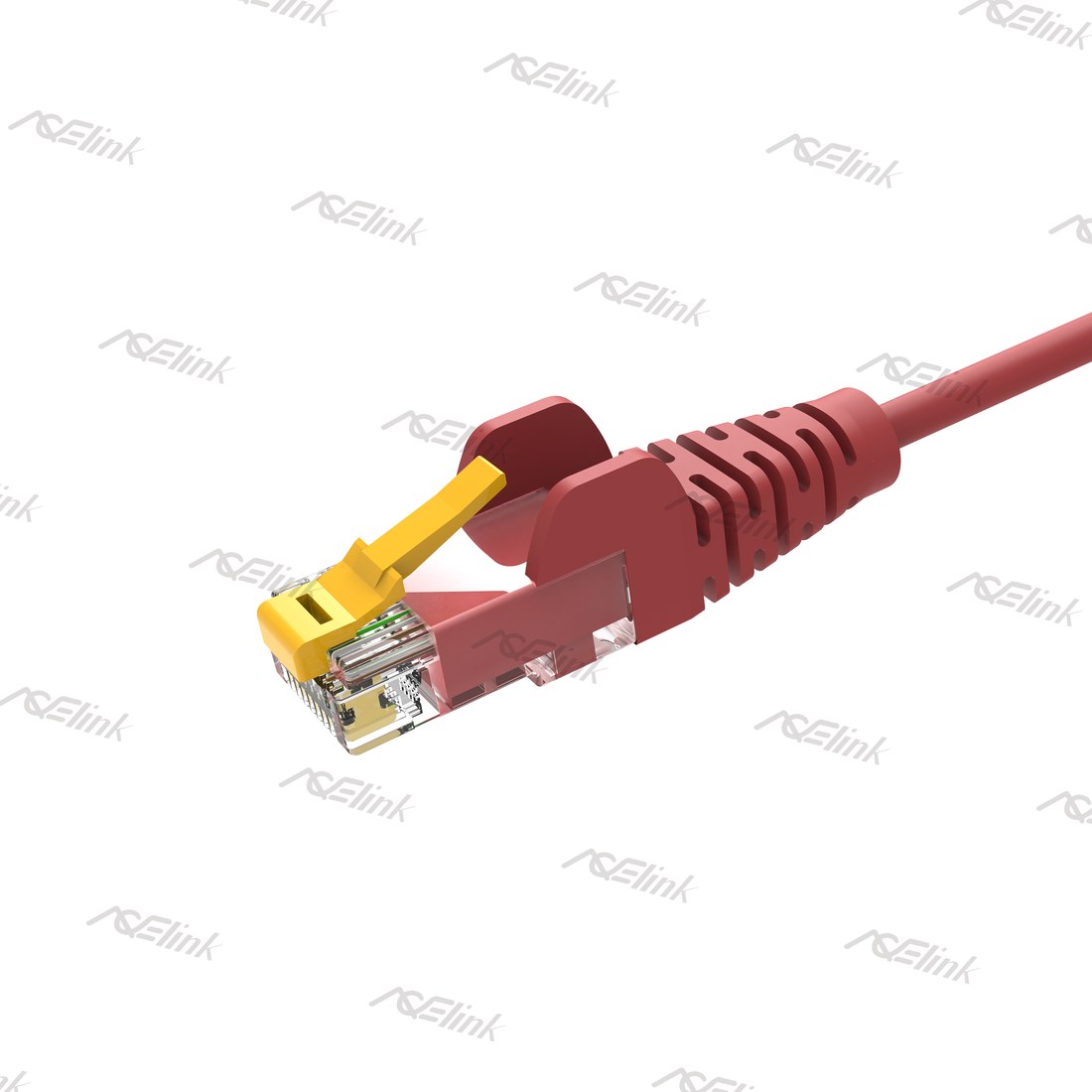

Main view Detail 1 Detail 2 Detail 3

Specifications

Product No. 160908172

U/UTP · 28AWG · Ø3.6 mm · Snagless Molding Boot

ConstructionU/UTP
CategoryCAT.6A
Conductor28AWG bare copper
Jacket MaterialTPE | PVC | LSZH
ConnectorDuraBend Latch Connector, Unshielded
Cable OD3.6 mm
Boot TypeSnagless Molding Boot
Test LimitFluke DSX 8000 Channel Test
Length RangeAny length (customized)
ComplianceRoHS, REACH, CE, CPR, ISO 9001, ISO 14001, RCM, UKCA, UL 444
Request Quote ← Back to All Products

Applications

🔌Data Centers
🔌Structured Cabling
🔌AI Computing
🔌High-Density Patching
🔌Hotels & Offices

Key Features

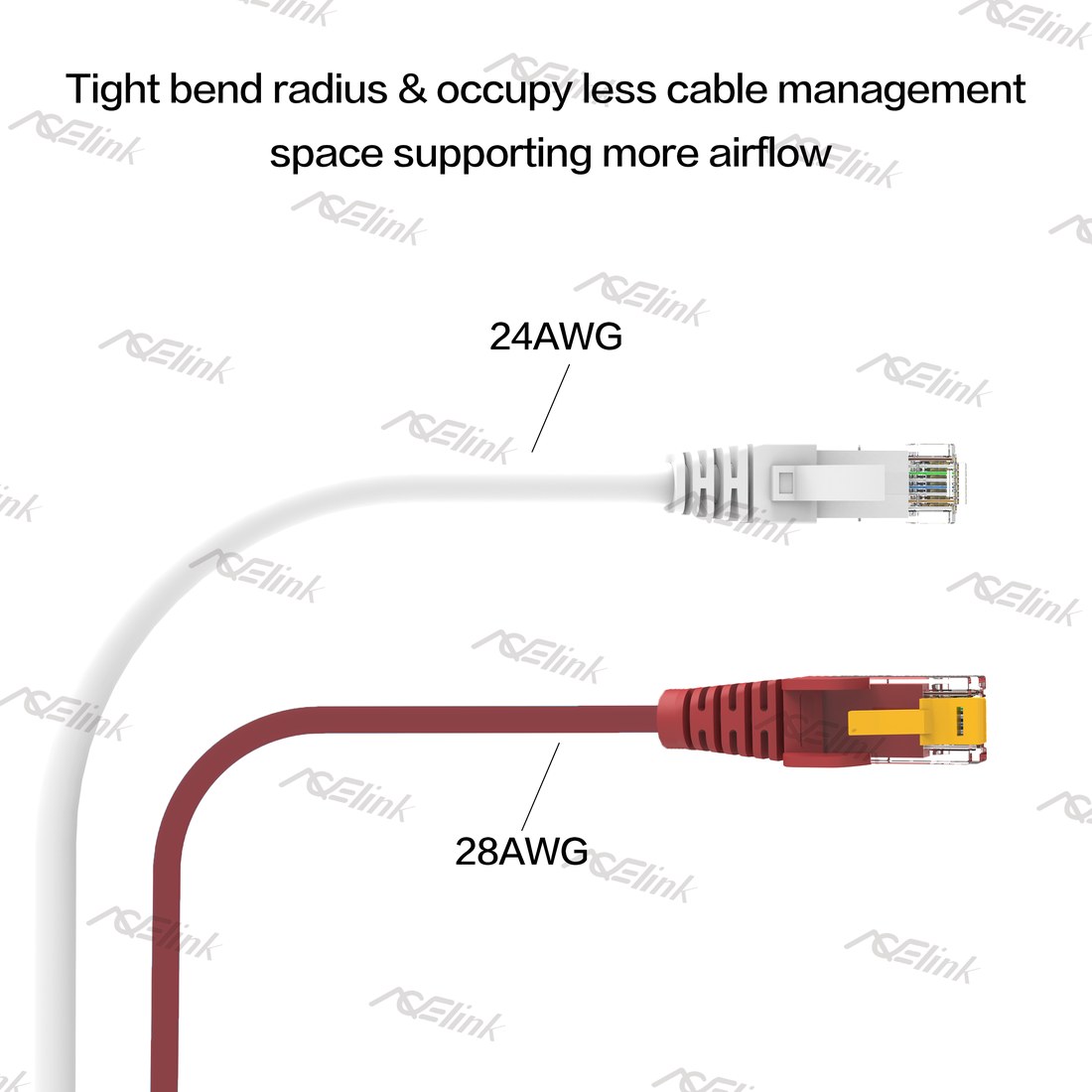

1.28AWG design enables easy routing and space-saving in high-density setups, improving airflow and cooling efficiency
2.Ideal for frequent plug/unplug use in high-traffic areas such as hotels and offices

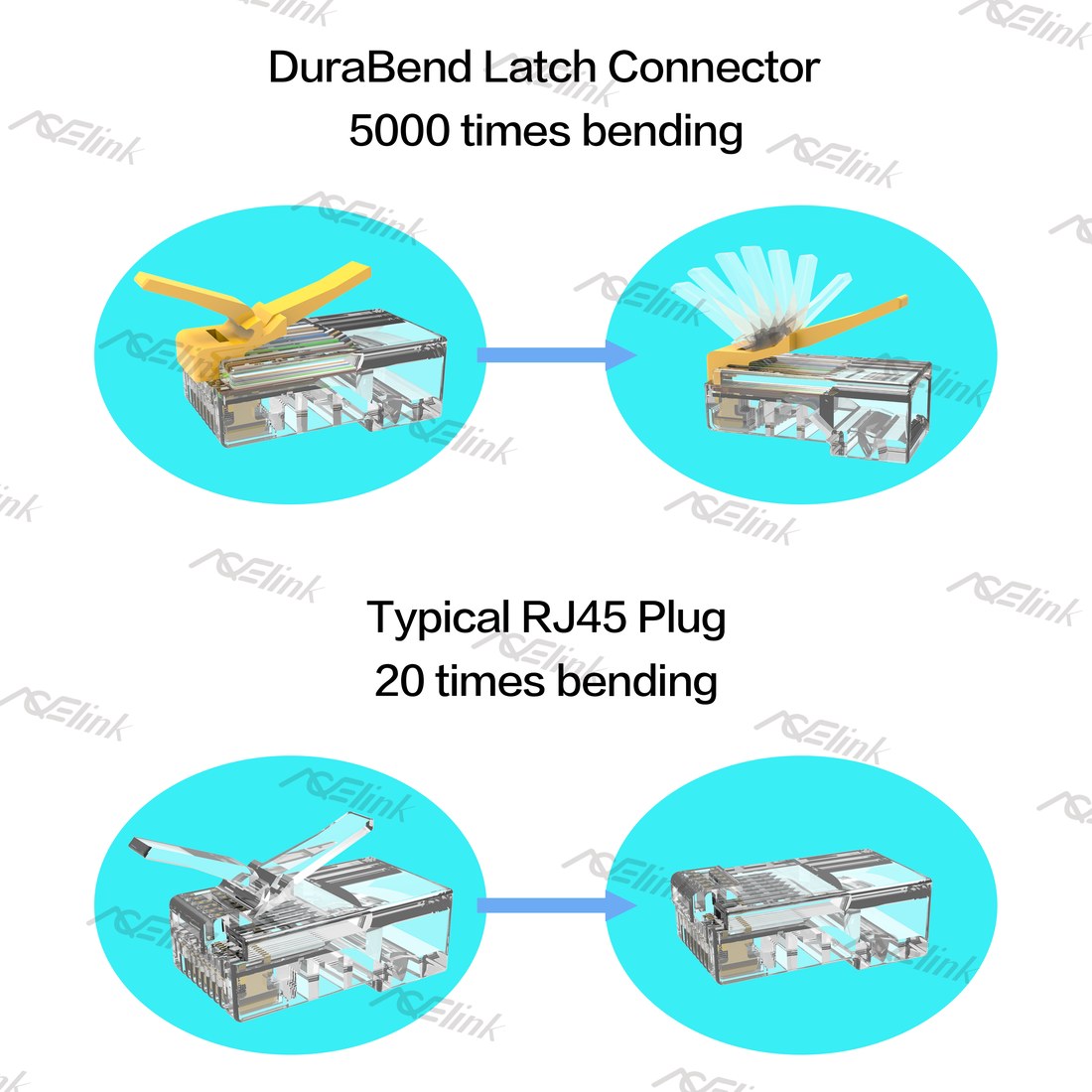

3.Reinforced latch withstands over 5,000 bending cycles for long-term durability
4.Nylon latch offers superior flexibility compared to standard PC materials
5.3-prong contact blade compatible

Customization Options

🔧
Any Length

Any length, connector and boot option to your requirement.

🔧
Jacket & Printing

PVC, LSZH or TPE jacket colour printing available.

🔧
Connector & Boot

Made to your drawing or specification.
