Copper Patch Cords · CAT.6A

Push-Pull Easy-Connection CAT.6A U/UTP 24AWG Patch Cable

Acelink Push-Pull patch cable with boot-activated latch release for easy extraction from dense cabinets. A grabber stick is included for tight spaces.

Push-Pull Easy-Connection CAT.6A U/UTP 24AWG Patch Cable
Main view Detail 1 Detail 2 Detail 3

Specifications

Product No. 161009171

U/UTP · 24AWG · Push-Pull Boot

ConstructionU/UTP
CategoryCAT.6A
Conductor24AWG bare copper
Cable OD6.0mm
Jacket MaterialLSZH or PVC
Boot TypePush-Pull Short Boots
Length Range0.3m-30m
ComplianceRoHS, REACH, CE, CPR, ISO 9001, ISO 14001, RCM, UKCA, UL 444
Request Quote ← Back to CAT.6A Products

Applications

🔌Data Centers
🔌Structured Cabling
🔌AI Computing
🔌High-Density Patching
🔌Hotels & Offices

Key Features

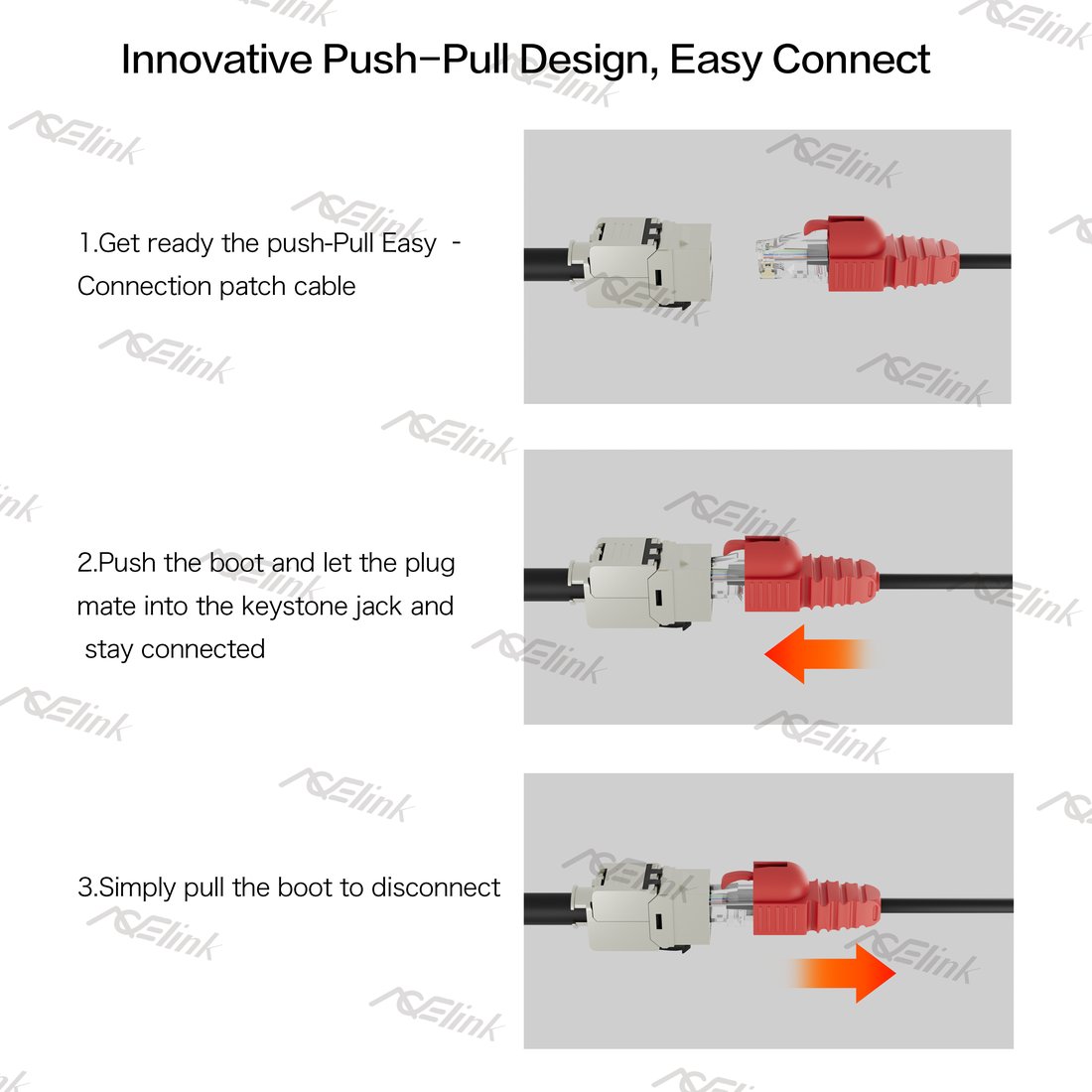

1.Innovative Push-Pull connectors for easy connection
2.When pulling the boot, the hook presses the latch down so the patch cable can be pulled out easily
3.Ideal for a high-density cabinet or an overcrowded patch panel

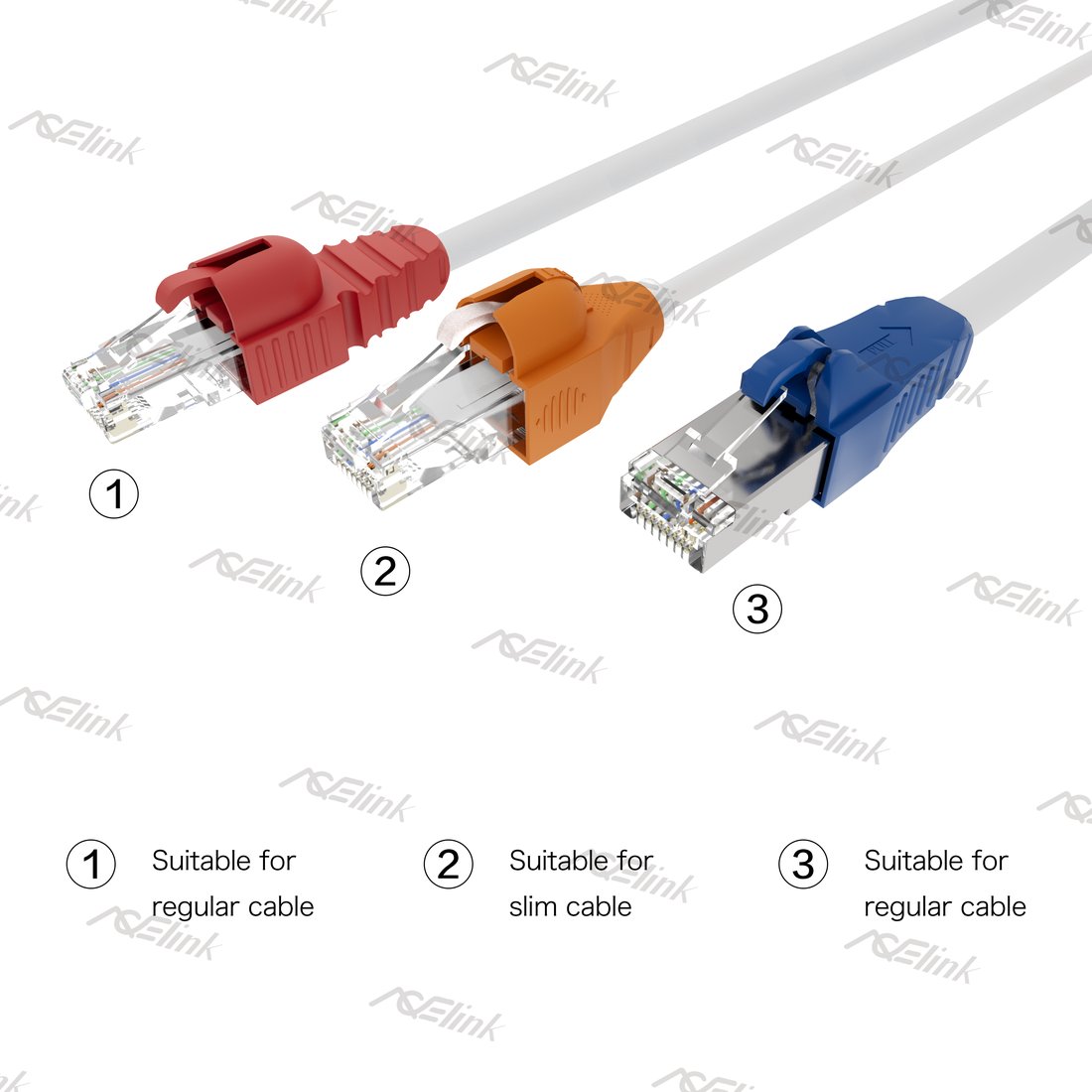

4.3 different push-pull connectors (2 for regular cable, 1 for slim cable)

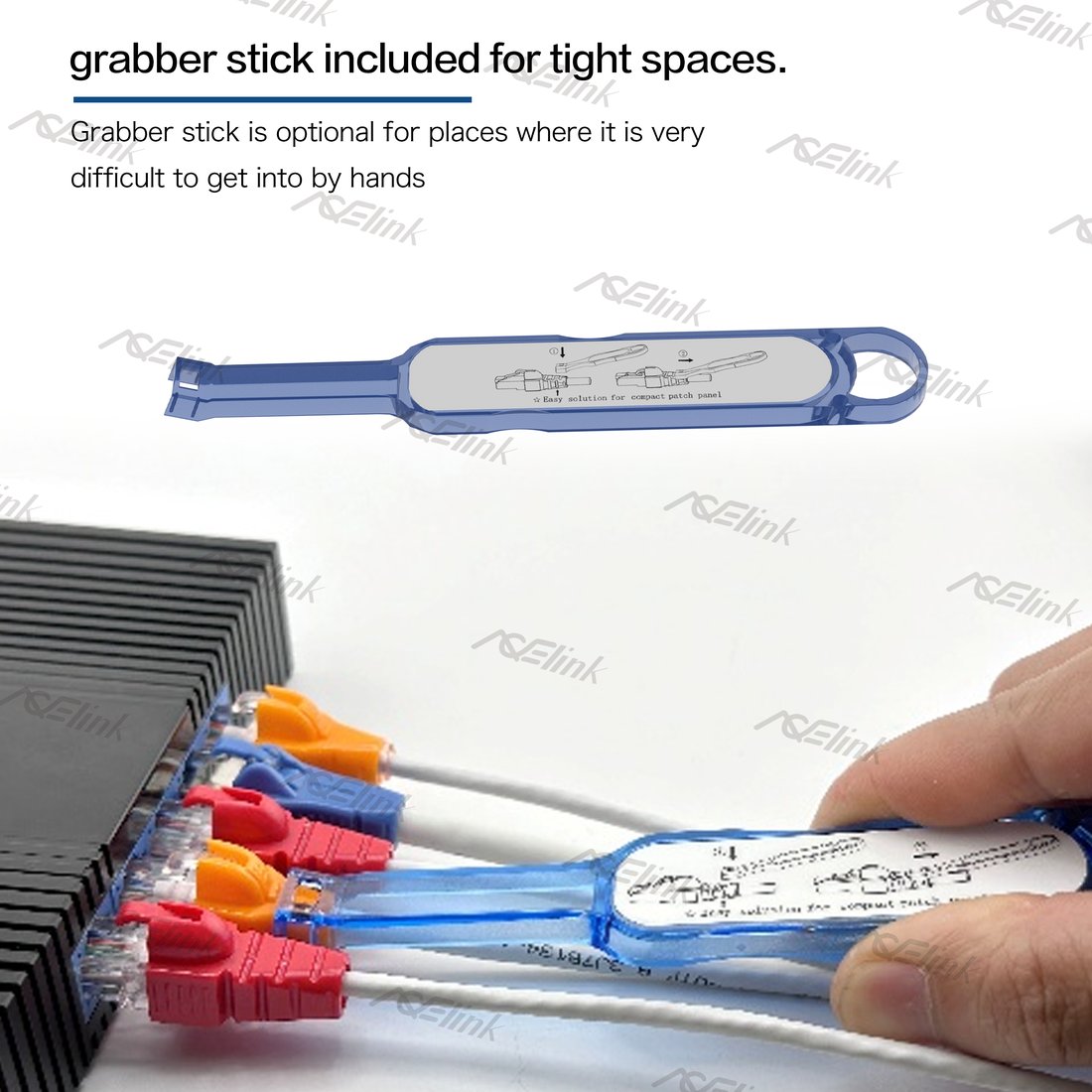

5.A special grabber stick locks onto the connector to unplug cables where hands cannot reach

Customization Options

🔧
Any Length

Any length, connector and boot option to your requirement.

🔧
Jacket & Printing

LSZH or PVC jacket with colour printing available.

🔧
Connector & Boot

Made to your drawing or specification.
